Functions Palette/Programming/Waveform/Analog Waveform/Waveform Generation

From LabVIEW Wiki
Jump to: navigation, search
Analog Waveform paletteBasic Function GeneratorTones and Noise WaveformFormula WaveformSine WaveformSquare WaveformTriangle WaveformSawtooth WaveformBasic MultitoneBasic Multitone with AmplitudesMultitone GeneratorUniform White Noise WaveformGaussian White Noise WaveformPeriodic Random Noise WaveformInverse f Noise WaveformGamma Noise WaveformPoisson Noise WaveformBinomial Noise WaveformBernoulli Noise WaveformMLS Sequence WaveformEx_Inst_Simulate SignalEx_Inst_Simulate Arbitrary Signal
About this image

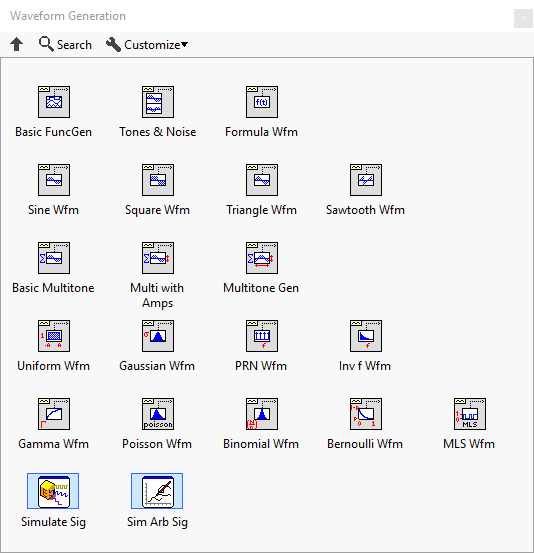

Waveform Generation palette (Click on a function to navigate, or on the arrow to go to parent palette)
Object information
Owning palette(s) Analog Waveform palette
Type Subpalette
Requires Basic Development Environment

Use the Waveform Generation VIs to generate different types of single and multi-tone signals, function generator signals, and noise signals.

Functions

Icon Name
Basic Function Generator Basic Function Generator
Tones and Noise Waveform Tones and Noise Waveform
Formula Waveform Formula Waveform
Sine Waveform Sine Waveform
Square Waveform Square Waveform
Triangle Waveform Triangle Waveform
Sawtooth Waveform Sawtooth Waveform
Basic Multitone Basic Multitone
Basic Multitone with Amplitudes Basic Multitone with Amplitudes
Multitone Generator Multitone Generator
Uniform White Noise Waveform Uniform White Noise Waveform
Gaussian White Noise Waveform Gaussian White Noise Waveform
Periodic Random Noise Waveform Periodic Random Noise Waveform
Inverse f Noise Waveform Inverse f Noise Waveform
Gamma Noise Waveform Gamma Noise Waveform
Poisson Noise Waveform Poisson Noise Waveform
Binomial Noise Waveform Binomial Noise Waveform
Bernoulli Noise Waveform Bernoulli Noise Waveform
MLS Sequence Waveform MLS Sequence Waveform
Ex_Inst_Simulate Signal Ex_Inst_Simulate Signal
Ex_Inst_Simulate Arbitrary Signal Ex_Inst_Simulate Arbitrary Signal

History

Version Change(s)
LabVIEW 2018 More info to come.
