Functions Palette/Programming/Waveform/Analog Waveform

From LabVIEW Wiki
Jump to: navigation, search
Object information
Owning palette(s) Waveform palette
Type Subpalette
Requires Basic Development Environment
Icon Waveform Palette - Analog Wfm.png

Use the Analog Waveform VIs and functions to perform arithmetic and comparison functions on waveforms.

Note: Many Analog Waveform VIs are available only in the LabVIEW Full and Professional Development Systems. If you have the LabVIEW Base Development System, you will not have the full set of the Analog Waveform VIs.

Waveform paletteGet Waveform ComponentsBuild WaveformSet Waveform AttributeGet Waveform AttributeWaveform Scale and OffsetNormalize WaveformAppend WaveformsNumber of Waveform SamplesWaveform Min MaxWaveform Scalar Limit ComparisonSearch WaveformWaveform to XY PairsWaveform ConstantGenerationMeasurements
About this image

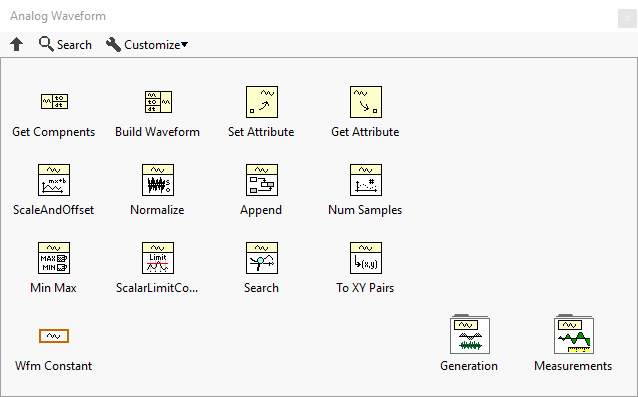

Analog Waveform palette (Click on a function to navigate, or on the arrow to go to parent palette)

Subpalettes

Icon Name
Generation Generation
Measurements Measurements

Functions

Icon Name
Get Waveform Components Get Waveform Components
Build Waveform Build Waveform
Set Waveform Attribute Set Waveform Attribute
Get Waveform Attribute Get Waveform Attribute
Waveform Scale and Offset Waveform Scale and Offset
Normalize Waveform Normalize Waveform
Append Waveforms Append Waveforms
Number of Waveform Samples Number of Waveform Samples
Waveform Min Max Waveform Min Max
Waveform Scalar Limit Comparison Waveform Scalar Limit Comparison
Search Waveform Search Waveform
Waveform to XY Pairs Waveform to XY Pairs
Waveform Constant Waveform Constant

History

Version Change(s)
LabVIEW 2018 More info to come.
