Functions Palette/Programming/File I/O/TDM Streaming/Advanced TDMS

From LabVIEW Wiki
Jump to: navigation, search
TDM Streaming paletteTDMS Advanced OpenTDMS Advanced CloseTDMS Set Channel InformationTDMS Create Scaling InformationTDMS Delete DataTDMS Set Next Write PositionTDMS Set Next Read PositionTDMS Reserve File SizeTDMS Convert FormatTDMS Advanced Synchronous I/OTDMS Advanced Asynchronous I/OTDMS Advanced Data Reference I/OTDMS In Memory
About this image

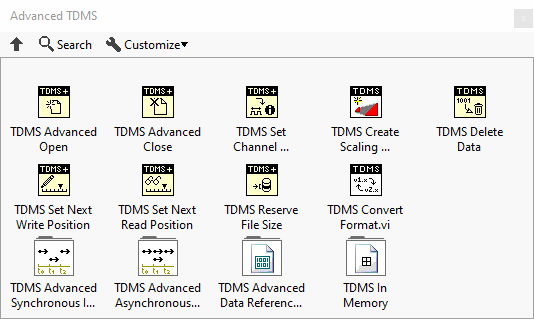

Advanced TDMS palette (Click on a function to navigate, or on the arrow to go to parent palette)
Object information
Owning palette(s) TDM Streaming palette
Type Subpalette
Requires Basic Development Environment

Use the Advanced TDMS VIs and functions to perform advanced file I/O operations, such as asynchronous reads and writes, on .tdms files. You can use these VIs and functions to read data from an existing .tdms file, write data to a new .tdms file, or replace subsets of data in an existing .tdms file. You also can use these VIs and functions to convert the file format version of a .tdms file or to create scaling information for unscaled data.

Note: Use the standard TDMS VIs and functions when the features of the Advanced TDMS VIs and functions are not necessary. Incorrect use of the Advanced TDMS VIs and functions might result in a corrupt .tdms file. If you disable buffering when using the Advanced TDMS VIs and functions, the data size you read or write must be a multiple of the sector size of the hard disk.

Subpalettes

Icon Name
TDMS Advanced Synchronous I/O TDMS Advanced Synchronous I/O
TDMS Advanced Asynchronous I/O TDMS Advanced Asynchronous I/O
TDMS Advanced Data Reference I/O TDMS Advanced Data Reference I/O
TDMS In Memory TDMS In Memory

Functions

Icon Name
TDMS Advanced Open TDMS Advanced Open
TDMS Advanced Close TDMS Advanced Close
TDMS Set Channel Information TDMS Set Channel Information
TDMS Create Scaling Information TDMS Create Scaling Information
TDMS Delete Data TDMS Delete Data
TDMS Set Next Write Position TDMS Set Next Write Position
TDMS Set Next Read Position TDMS Set Next Read Position
TDMS Reserve File Size TDMS Reserve File Size
TDMS Convert Format TDMS Convert Format

History

Version Change(s)
LabVIEW 2018 More info to come.
