Controls Palette/Fuse Design System

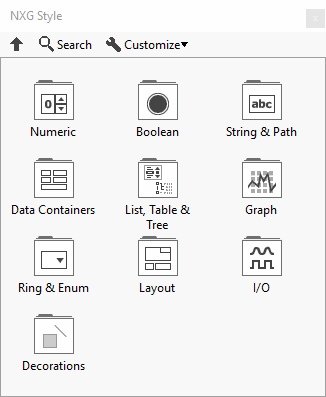

NXG Style palette (Click on a function to navigate, or on the arrow to go to parent palette)
| Object information | |
|---|---|
| Owning palette(s) | Controls Palette |
| Type | Subpalette |
| Requires | Basic Development Environment |
The NXG Style palette was added in LabVIEW 2018 to allow creation of LabVIEW user interfaces that look like LabVIEW NXG user interfaces. It was later renamed to Fuse Design System in LabVIEW 2023 Q1 after LabVIEW NXG was discontinued in 2021[1].
Subpalettes
|
Numeric |
|
Boolean |
|
String & Path |
|
Data Containers |
|
List, Table & Tree |
|
Graph |
|
Ring & Enum |
|
Layout |
|
I/O |
|
Decorations |
History
| Version | Change(s) |
|---|---|
|
The Array, Matrix & Cluster subpalette was renamed the Data Containers subpalette and the Containers subpalette was renamed the Layout subpalette. |
|
LabVIEW 2018 is the first version with the NXG Style palette. |
|
Palette renamed to Fuse Design System in LabVIEW 2023 Q1. |
