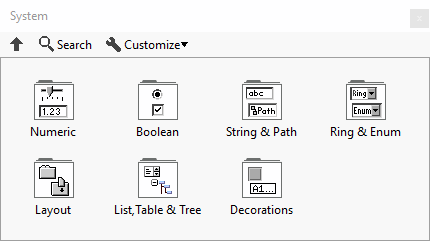

System palette (Click on a function to navigate, or on the arrow to go to parent palette)
Object information
Owning palette(s) Controls Palette
Type Subpalette
Requires Basic Development Environment

The System controls uses the control style from the Operating System (OS). If these are used, be aware that the look of the application could change if used in a different OS (for example: developing in Windows 7 and then upgrading to Windows 10).

Subpalettes

Controls Palette/System/Numeric Numeric
Controls Palette/System/Boolean Boolean
Controls Palette/System/String & Path String & Path
Controls Palette/System/Ring & Enum Ring & Enum
Controls Palette/System/Layout Layout
Controls Palette/System/List,Table & Tree List,Table & Tree
Controls Palette/System/Decorations Decorations

History

Version Change(s)
LabVIEW 2019 The Containers subpalette was renamed the Layout subpalette.
