VI class/Fake Exec State method

From LabVIEW Wiki
Jump to: navigation, search
VI Server Method Information
Method ID 411
Scope Private
Data Name Fake Exec State
Short Name* Fake Exec State
Long Name* Fake Exec State
* Displayed here in English. Short and Long names appear in the language of the LabVIEW IDE.
Owning Class ID 2
Owning Class Name VI Class
Return Data Type No return value
Invoke Node Fake Exec State

VI.Fake Exec State is a private method. It is used to make a VI appear to start or stop running without actually starting or stopping it. A VI that is fake-stopped in this way can be edited, including through VI Scripting. Clicking the Run arrow on a VI in this state will not restart the VI, but merely "remind" LabVIEW that it is actually running, allowing it to be stopped. If a non-running VI is fake-started using this method, it will become impossible to start or edit the VI until the method is called again with the actual execution state, as clicking the Stop button will have no effect.


Data type Name Required Description
I32 State Yes Using 1 will make the VI appear to be running, and using 2 will make the VI appear to be stopped, regardless of its actual state.

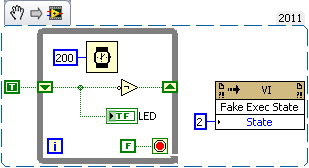

Fake Exec State.png

Drag this VI Snippet into a VI. An LED indicator should appear on the front panel. Click the Run arrow, and the VI will appear to stop running immediately, but the LED will continue blinking.

One real use this method can have is when testing things with scripting. If you want to just get a feel for how a certain method or property works, for example, you can wire 2 to Fake Exec State to test it in the same VI. This way you won't need to open a new VI. Keep in mind, however, that as with any private property or method, this is only to be used for experimentation like this, and is 100% unsupported by National Instruments, so don't use it for anything important.


Version Change(s)
LabVIEW 2018 More info to come.
